KESS V2, K-TAG & KESS3: How ECU Tuning Tools Have Evolved

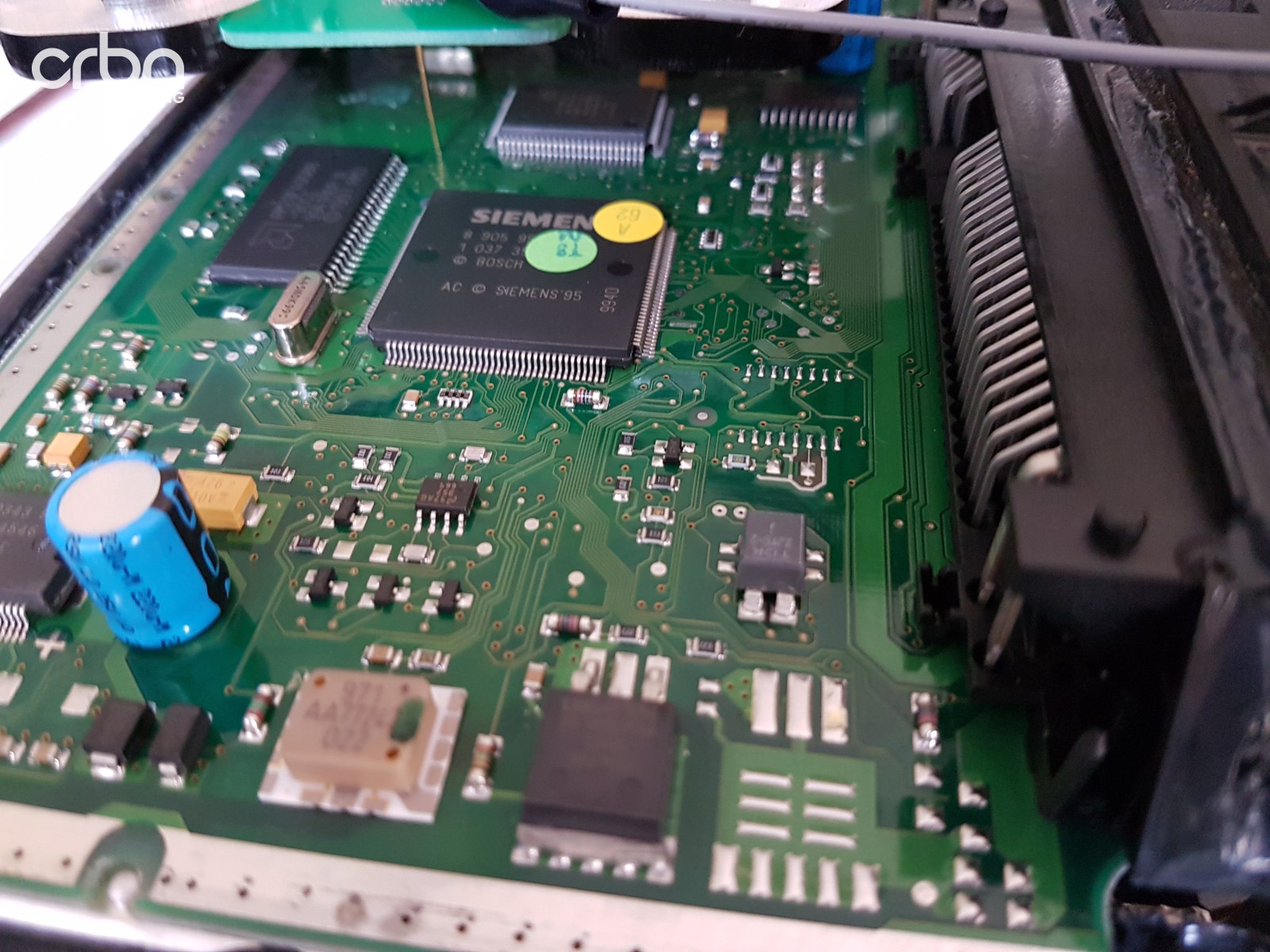

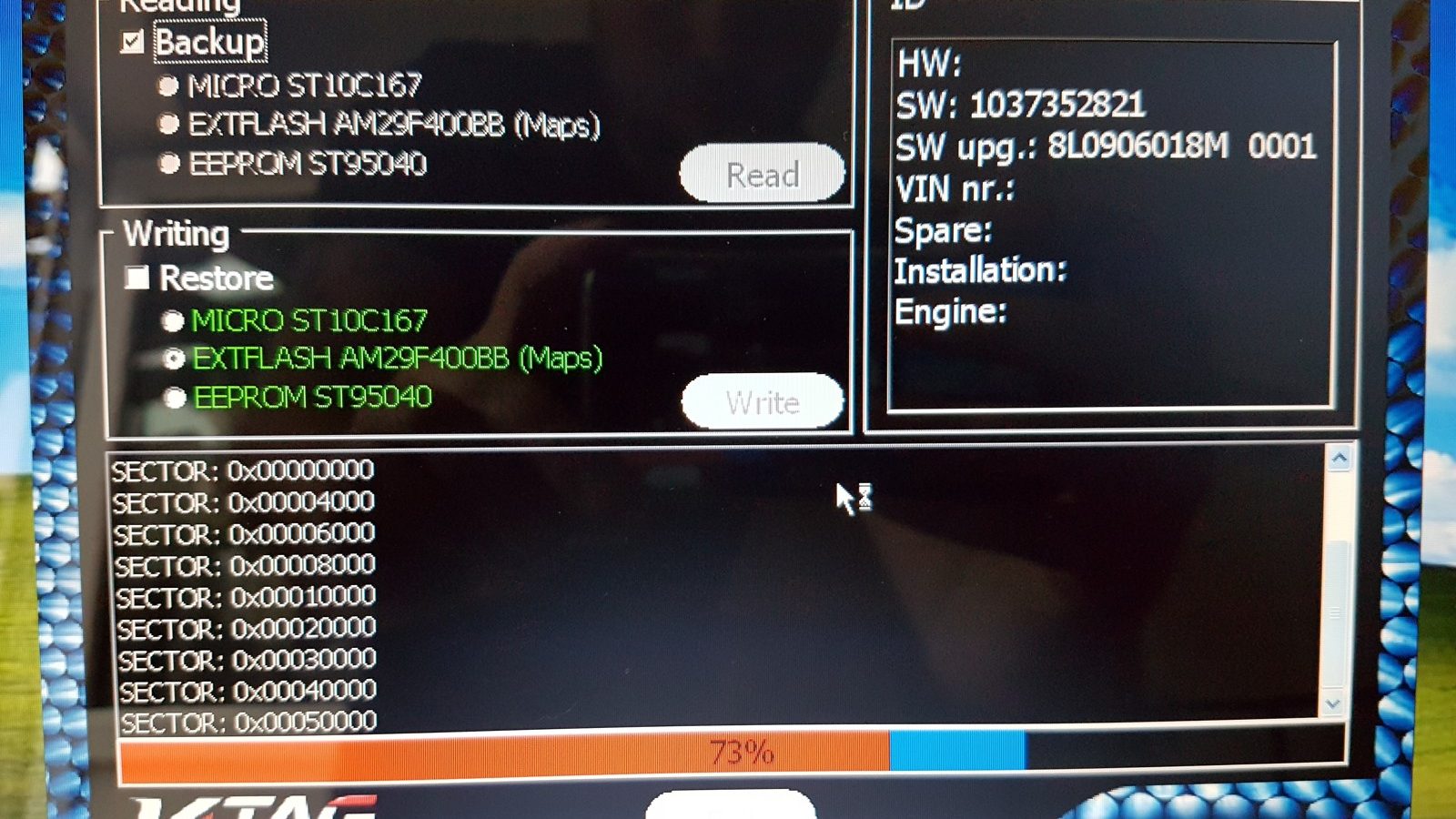

Every so often we dig back through old job photos — and this one’s a good excuse to talk about how far ECU tuning tools have come. These shots are from a K-TAG session in boot mode, opening the ECU casing itself to get at the chip directly. Here’s what that actually means, and why we rarely need to do it the hard way any more.

A quick recap: OBD vs bench

We’ve covered the basics of OBD vs bench remapping before — OBD works through the diagnostic port with nothing removed, bench means the ECU comes out but stays sealed, connected via its own factory connector. Boot mode goes a step further than either.

Boot mode: opening the ECU itself

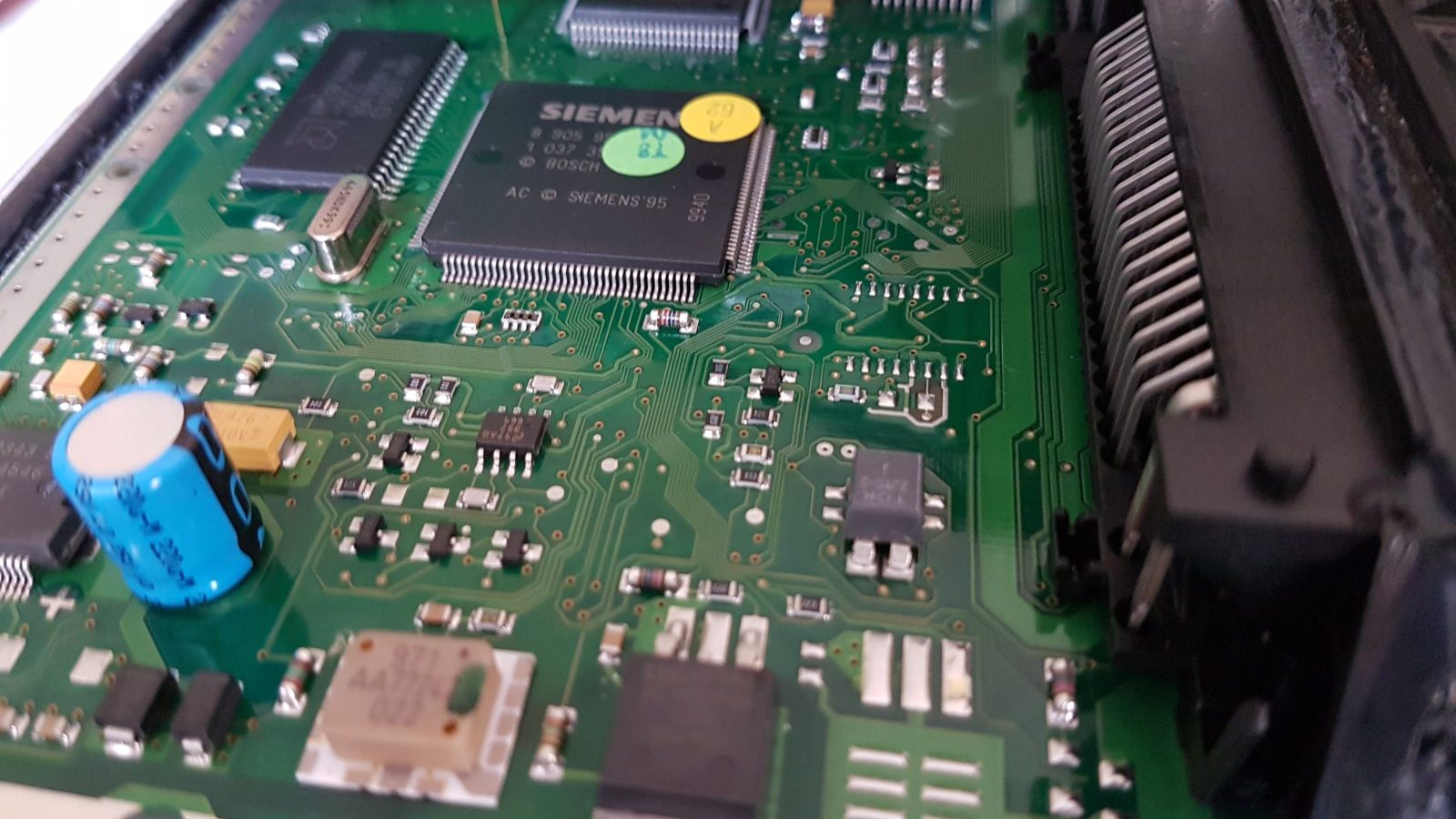

Boot mode is the deepest level of access there is. The ECU is removed from the car and opened up, with the programming tool connecting directly to test points on the circuit board rather than through any connector. It gives full read/write access to every area of the ECU’s memory — useful for the most locked-down units, or for recovering an ECU that’s corrupted and won’t respond any other way.

It’s more involved than bench work — there’s no shortcut, the case has to come apart — but it means there’s effectively no ECU we can’t get into if a job calls for it.

The old way: K-TAG and KESS V2

Alientech’s previous-generation tools, K-TAG and KESS V2, were two separate boxes: K-TAG handled bench and boot mode work, KESS V2 handled OBD. If a job needed both approaches — reading via OBD first, then a full boot-mode job on the bench — that meant switching tools entirely.

Where we are now: KESS3

Alientech’s current tool, KESS3, replaces both K-TAG and KESS V2 with a single unit that handles OBD, bench and boot mode from the same box. It’s a considerably more powerful piece of hardware than either of its predecessors, and it means less time swapping equipment mid-job and a faster turnaround when a car does need the deeper access.
